Brass Melting Furnace Guide: Alloy, Fume Control, and Model Selection
Quick answer
A brass melting furnace must be selected for the exact alloy, not for a single internet “brass melting point.” Brass contains copper and zinc in varying proportions and may include lead or other additions. Its melting behavior, casting temperature, fumes, and waste handling therefore depend on composition.
For a known brass alloy within the verified operating range, a small PID-controlled resistance furnace can be practical. The ToAuto TGF3000-V1.1 page lists brass, and the 1,800 W TRF3000 family may offer faster heating, but buyers should confirm revision-specific temperature and power. Fume control is central: heating zinc-containing alloys can generate zinc oxide fume, which NIOSH associates with metal fume fever.
Brass is not one metal
“Yellow brass,” “red brass,” cartridge brass, leaded free-machining brass, and dezincification-resistant brass are different materials. Unknown plumbing hardware, valves, keys, and decorative scrap should not be mixed and called a known casting alloy.
That matters for three reasons:
- Melting range: Alloys soften and melt over a range rather than at one universal temperature.
- Fumes and exposure: Zinc and other alloying elements can oxidize or volatilize during heating.
- Casting result: Mixing unknown grades changes color, fluidity, strength, shrinkage, and machinability.
The most useful input to a furnace decision is a supplier certificate or known alloy designation. A spark, color, or magnet test is not a complete chemical analysis.
The furnace-selection checklist
Confirm the alloy and its liquidus
Use an authoritative data sheet for the exact grade. Select a furnace whose verified working range provides practical headroom without encouraging needless overheating. Overheating brass can increase oxidation and zinc loss; it is not a cure for poor charge preparation.
Match real batch mass to crucible volume
Nominal kilograms may be based on gold, copper, aluminum, or simply a crucible family. Confirm brass capacity, leave safe freeboard, and ensure every solid piece sits below the lid. Never force material into a crucible or allow scrap to bridge above the chamber.
Verify power and the supply circuit
ToAuto’s compact electric range includes 1,400 W and 1,800 W units. Check the exact nameplate, voltage, plug, and circuit. A hot plug, damaged cord, nuisance trip, or improvised adapter is a stop-work condition.
Plan fume capture before the first heat
NIOSH states that zinc oxide fume can cause chills, muscle aches, nausea, fever, cough, chest tightness, and breathing difficulty. NIOSH also identifies melting and pouring brass as processes associated with zinc oxide exposure. Use a qualified hazard assessment and engineered ventilation appropriate to the alloy and process. A respirator, if required, must be selected and used within a proper respiratory-protection program; it is not a substitute for feasible engineering controls.
Control cross-contamination
Use a dedicated, clearly labeled crucible for brass when chemistry matters. Leaded and lead-free brass must not be casually mixed. Keep charge records and do not reuse dross or spills as unidentified feedstock.
Which ToAuto furnace fits brass work?
| ToAuto family | Why it may fit | What to verify |
|---|---|---|
| TGF3000 | Compact 1,400 W, 3 kg-positioned furnace; manufacturer lists common non-ferrous metals | Exact alloy, batch size, cycle expectation, and 1,100°C limit |
| TGF3000-V1.1 | Official page explicitly lists brass; 1 kg and 3 kg crucibles support two batch scales | Revision-specific wattage and maximum temperature conflict across source versions |
| TRF3000 family | 1,800 W and dual-crucible positioning suit faster small-batch work | Model naming, voltage, circuit, and exact maximum temperature |
| TRF5000 | Larger 5 kg-positioned batch format | Obtain an official revision-specific maximum before recommending a near-limit alloy |
| TAF8000 | Large aluminum-based capacity, 1,000°C ceiling | Consider only if the known alloy and required working range are safely below the verified limit; it is primarily an aluminum model |
No table can replace alloy confirmation. A model that melts one brass grade is not automatically validated for every copper-zinc alloy or full nominal load.
A controlled brass-melting workflow
- Obtain known, clean alloy feedstock and its safety data.
- Reject wet, sealed, oily, painted, plated, galvanized, or unidentified pieces.
- Segregate leaded alloys and establish compliant waste handling.
- Cut material so the cold charge fits below the crucible rim and furnace lid.
- Inspect the dry furnace, crucible, tongs, mold, and PPE.
- Confirm ventilation operation before heating.
- Follow the exact furnace and alloy procedure; minimize unnecessary high-temperature holding.

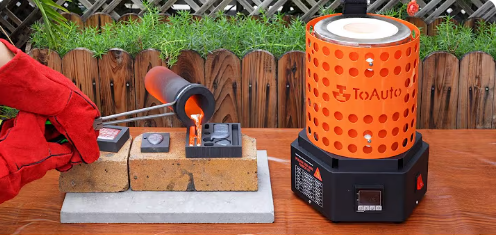

- Skim and pour only into a completely dry, suitable mold using a rehearsed movement.
- Record the alloy, charge mass, temperature settings, time, observations, and resulting casting.
Do not copy unverified forum flux recipes. Flux selection depends on alloy and process, can attack crucibles, and creates additional chemical and waste considerations.
Common problems and better diagnoses
White smoke or a sweet/metallic taste
Stop the process and leave the exposure area according to the site emergency plan. Do not use visible smoke as a normal operating indicator. Symptoms after zinc oxide exposure can be delayed; follow occupational-health or medical guidance appropriate to the situation.
Excessive dross
Possible causes include contaminated scrap, excessive temperature, long holding, turbulence, repeated lid opening, and unsuitable flux practice. Measure and change one variable at a time.
The casting color or behavior changes between batches
Unknown scrap or zinc loss may have changed composition. Temperature control cannot restore a lost or unidentified alloy balance. Use known ingot and document returns.
The furnace reaches set point but the charge is not fluid
Check the alloy data, charge mass and geometry, supply voltage under load, sensor behavior, element condition, and actual revision rating. Never exceed the verified maximum to force a melt.
Frequently asked questions
What temperature melts brass?
There is no single brass melting temperature. Brass alloys melt over composition-dependent ranges. Use the liquidus and recommended casting guidance for the exact alloy, not a generic number from a product title.
Can an electric furnace melt brass?
Yes, if the exact alloy’s working requirement is safely inside the furnace’s verified range and the batch, crucible, electrical supply, and ventilation are suitable. ToAuto lists brass for the TGF3000-V1.1, subject to revision verification.
Is brass dangerous to melt?
It presents serious molten-metal, heat, electrical, moisture, and fume hazards. Zinc-containing alloys can generate zinc oxide fume associated with metal fume fever. Unknown or leaded brass adds further exposure and waste concerns.
Can I melt brass and copper in the same crucible?
It may be physically possible, but it can contaminate future heats and make chemistry difficult to control. Dedicated, labeled crucibles are the better practice when alloy quality matters.
Is a respirator enough for brass melting?
No. Exposure control should begin with elimination or substitution where possible, followed by engineered ventilation and work practices. Respiratory protection requires correct selection, fit, training, maintenance, and a compliant program where applicable.
Bottom line
Buy a brass melting furnace only after answering three questions: What exact alloy is being melted? What verified working range and batch can the exact furnace revision support? How will zinc and any other contaminants be controlled? If the alloy is unknown or the fume plan is “open a window,” the process is not ready.
