Furnace Temperature vs. Metal Temperature: What the Display Actually Tells You
Quick answer

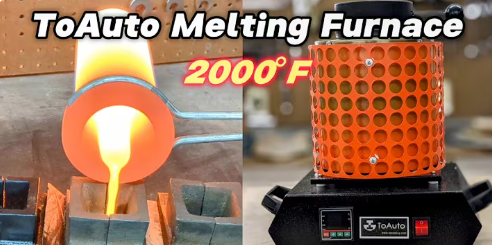

The furnace display normally reports the controller sensor's measurement, not a direct measurement of the entire metal bath. Sensor position, thermal gradients, crucible condition, charge mass, and time can separate the displayed value from the metal temperature. Treat the display as process information until a revision-specific method validates what it represents.
Four temperatures are easy to confuse
| Value | What it means | What it does not prove |
|---|---|---|
| Setpoint | The controller's target | That the chamber or metal has reached it |
| Process value | The temperature at the installed sensing system | That every location has the same temperature |
| Chamber or crucible-zone temperature | Conditions near a defined measurement point | That the bath is uniform or ready to pour |
| Metal temperature | Temperature measured in the melt with a compatible method | Alloy chemistry, fluidity, or casting quality by itself |
NIST explains that a thermocouple converts a small voltage created across a temperature gradient into a temperature reading. It also warns that high-temperature exposure can change a thermocouple and cause loss of calibration. A number on a controller is therefore the end of a measurement chain, not an all-purpose truth about everything inside the furnace.
Why the display and the bath can disagree
The charge must absorb heat through the furnace atmosphere and crucible. A large compact charge, a partly melted heel, tightly packed scrap, a worn crucible, or repeated lid opening can change that transfer. The installed sensor may also be closer to a heating element, wall, or cooler region than the metal.
NIST's thermocouple calibration guidance notes that static temperature gradients inside a furnace can make two thermometers read differently even when furnace drift is zero. That principle does not quantify a ToAuto offset, but it explains why a universal correction such as "add 30°C" is not defensible.
The current ToAuto TGF3000 page describes PID control but does not publish a revision-matched sensor-location drawing, calibration method, or uncertainty budget. It also contains conflicting power values in different sections. Confirm the physical nameplate, exact revision, manual, and sensor configuration before turning a displayed value into a process limit.
Choose the measurement by the decision
| Decision | Minimum useful evidence |
|---|---|
| Is the controller heating and responding? | Stable process-value trend and normal controller behavior |
| Has a known charge fully melted? | Visual/process confirmation under the approved procedure; never the display alone |
| Is the bath inside a narrow pouring window? | An alloy-appropriate, calibrated measurement method approved for molten-metal service |
| Is the installed sensor drifting? | Comparison against a qualified reference under a documented method |
| Can one offset be reused forever? | No; validate by model, sensor, position, load, range, and condition |
Do not insert an ordinary probe into molten metal. An immersion assembly must have suitable thermocouple materials, range, sheath, immersion depth, response time, contamination control, and handling instructions. Improvised contact can damage the probe, contaminate the melt, splash metal, or expose the operator to heat.
What real users ask
A representative r/MetalCasting thread asks whether a protected probe above the crucible measures the metal or only the furnace atmosphere. The supplied ToAuto review dataset also contains reports of probe replacement, display faults, and one owner comparing a unit against another thermocouple. These sources reveal the question; they do not establish the accuracy of any unit.
Build a defensible verification record
Record the furnace model and revision, installed sensor ID, charge alloy and mass, crucible ID, setpoint, displayed trend, lid openings, elapsed time, reference instrument, reference location, and result. Repeat under controlled conditions before using a relationship for production decisions. If the two readings diverge, investigate location, sensor condition, wiring, controller configuration, and the method before changing the setpoint.
Frequently asked questions
Does reaching the melting point on the display mean the metal is molten?
No. The display can represent a sensor outside the bath, and melting also depends on alloy range, heat transfer, charge form, mass, and time.
Can I point an infrared thermometer at molten metal?
Only under a validated method. Reflective surfaces, oxide or dross, viewing angle, emissivity settings, and instrument range can produce misleading readings.
Can I calibrate the furnace with boiling or melting water?
That does not validate the complete high-temperature installation or its reading at casting temperatures. Use a qualified calibration or comparison method appropriate to the sensor and range.
Should I change the PID settings to fix a temperature difference?
Not until the measurement system and process are diagnosed. Controller parameters, probe position, wiring, and calibration are revision-specific; an unsupported change can worsen control.
Bottom line
In the furnace temperature vs metal temperature question, the display is a sensor reading used by the controller. It is not automatic proof of bath temperature or readiness to pour. Match the measurement method to the decision, validate it under controlled conditions, and preserve the model, sensor, and charge context.
