Best Diamond Blade for Cutting Agate: What to Look For
Agate is one of the most popular materials in lapidary work. It is beautiful, colorful, and often full of patterns that makers want to preserve. But agate is also dense and hard, which means blade choice matters.
A good diamond blade for cutting agate should do more than cut through the stone. It should help you control the cut, reduce chipping, limit material loss, and protect the pattern inside the stone.
Why Agate Needs the Right Blade
Agate is a form of chalcedony and is usually much harder than many beginner-friendly stones. When cutting agate, users often care about three things:
First, they want to see the pattern clearly after cutting.
Second, they want to avoid cracking or chipping the edge.
Third, they want to avoid wasting valuable material.
This is why a thin, stable diamond blade is often preferred for smaller agate pieces or detailed cuts. A blade that is too aggressive may cut faster, but it can also leave a rougher edge or increase the chance of chipping.
What Type of Blade Works Best for Agate?
For most agate cutting, a sintered diamond blade is a practical choice. It offers a good balance between durability and cutting stability. Compared with very soft or fast-wearing blades, a sintered diamond blade can usually handle repeated gemstone cutting better.
For very delicate agate slices, users may prefer a finer blade or a thinner rim. For rough trimming or opening larger agate pieces, durability becomes more important.
A simple way to choose:
| Cutting Goal | Blade Preference |
|---|---|
| Opening rough agate | Durable sintered diamond blade |
| Cutting small agate pieces | Thin diamond blade |
| Reducing edge chipping | Finer grit, slow feed, wet cutting |
| Preserving material | Thin blade with stable machine support |
| Frequent agate cutting | Long-life sintered diamond blade |
Blade Thickness Matters
Blade thickness affects how much material is removed during cutting. A thinner blade creates a narrower cut, which is helpful when the agate is valuable or has a special pattern.
However, thin blades need stable machine support. If the blade wobbles, the material is pushed too hard, or the stone is not held securely, the cut may become uneven.
For ToAuto G6 series users, the 6-inch sintered diamond blade uses a 0.8 mm thin profile, which is useful for reducing material loss during gemstone cutting.

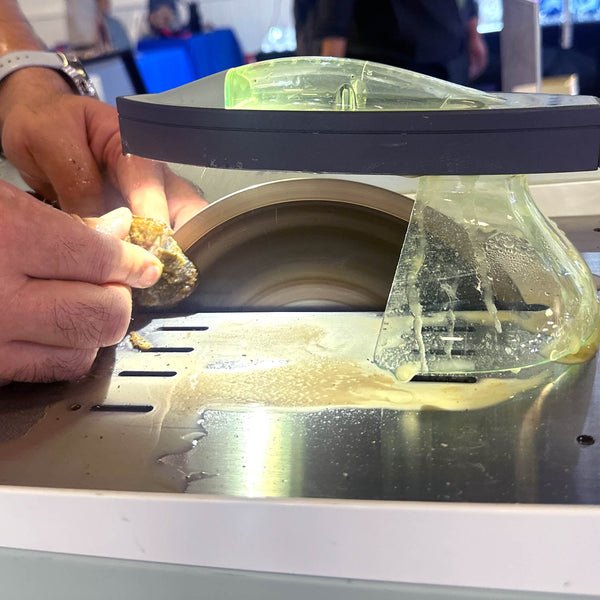

Use Wet Cutting for Agate
Agate should be cut with coolant. Wet cutting helps control heat, wash away cutting debris, and reduce stress on both the blade and the stone.
Dry cutting can cause heat buildup, which may increase the risk of cracking, poor cut quality, or faster blade wear.
For better agate cutting:
- Add enough coolant before cutting.
- Keep the stone stable.
- Feed slowly and evenly.
- Do not force the stone into the blade.
- Slow down near the end of the cut.
RPM and Feed Speed
For a 6-inch diamond blade, RPM should stay within the recommended safe range for the blade and machine. On the ToAuto 6-inch sintered diamond blade, the recommended speed range is 2000–3500 RPM, with a maximum of 4500 RPM.
But RPM alone does not guarantee a clean cut. Feed speed is just as important. Agate should be fed slowly and steadily. Pushing too hard can cause chipping, blade deflection, or uneven cutting.
How to Reduce Chipping When Cutting Agate
Chipping often happens near the exit point of the cut. This is where the material becomes thinner and less supported.
To reduce chipping:
- Use wet cutting.
- Keep the agate firmly supported.
- Use a suitable blade thickness.
- Avoid aggressive pushing.
- Reduce feed speed near the final 1–2 mm.
- Let the blade do the work.
Recommended ToAuto Blade
For ToAuto G6 / G6 Pro / G6 Max users, the 6-Inch Sintered Diamond Cutting Blade is designed for gemstone and hard brittle material cutting, including agate, jade, quartz, glass, turquoise, coral, shell, and amber.
FAQ
What blade is best for cutting agate?
A sintered diamond blade is a good choice for general agate cutting because it balances durability and stable cutting performance.
Can I dry cut agate?
Wet cutting is recommended. Coolant helps reduce heat, debris, chipping, and blade wear.
Why does agate chip during cutting?
Common causes include fast feed speed, insufficient coolant, blade vibration, coarse grit, or poor material support.
Is a thinner blade better for agate?
A thinner blade can reduce material loss, but it requires stable machine support and careful feeding.
