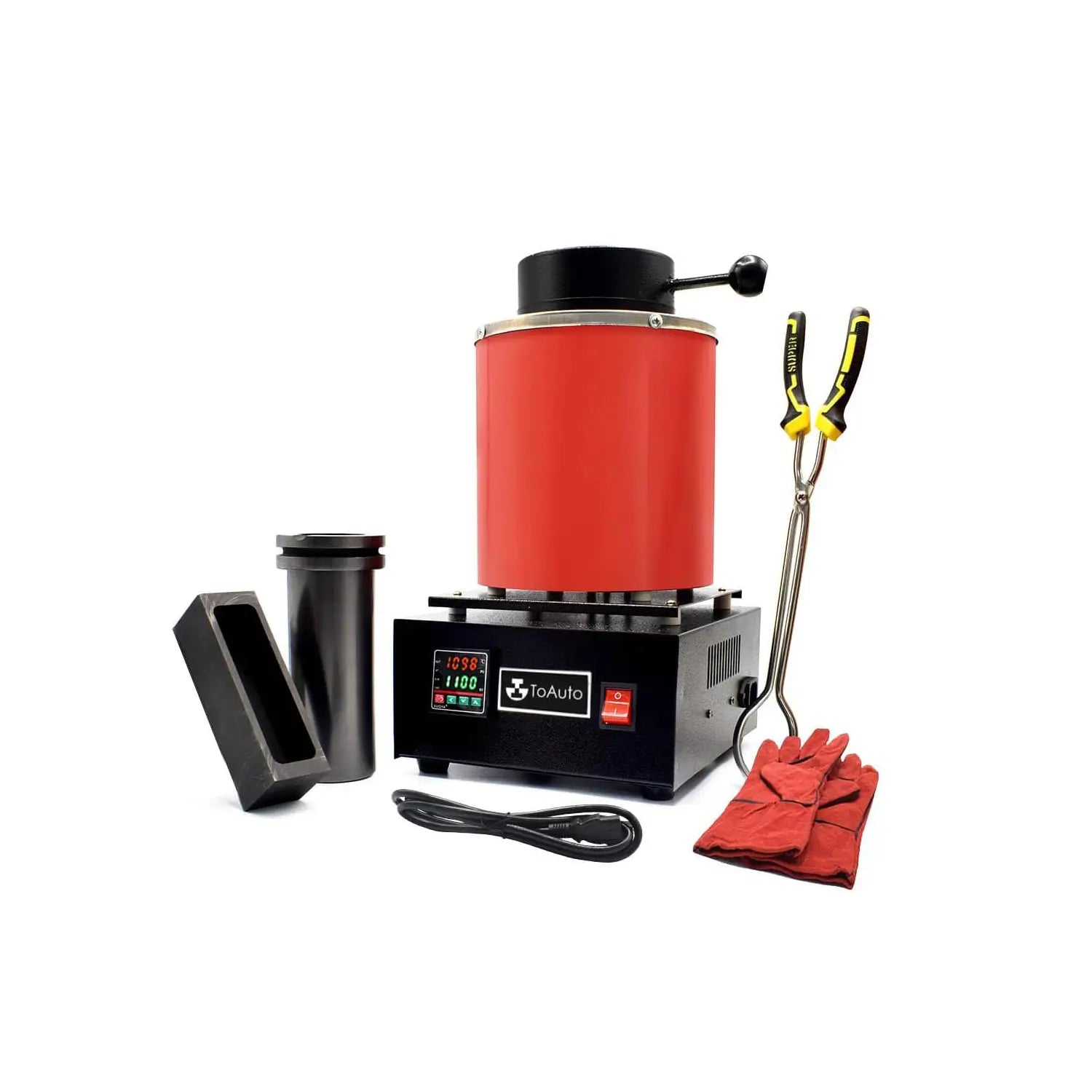

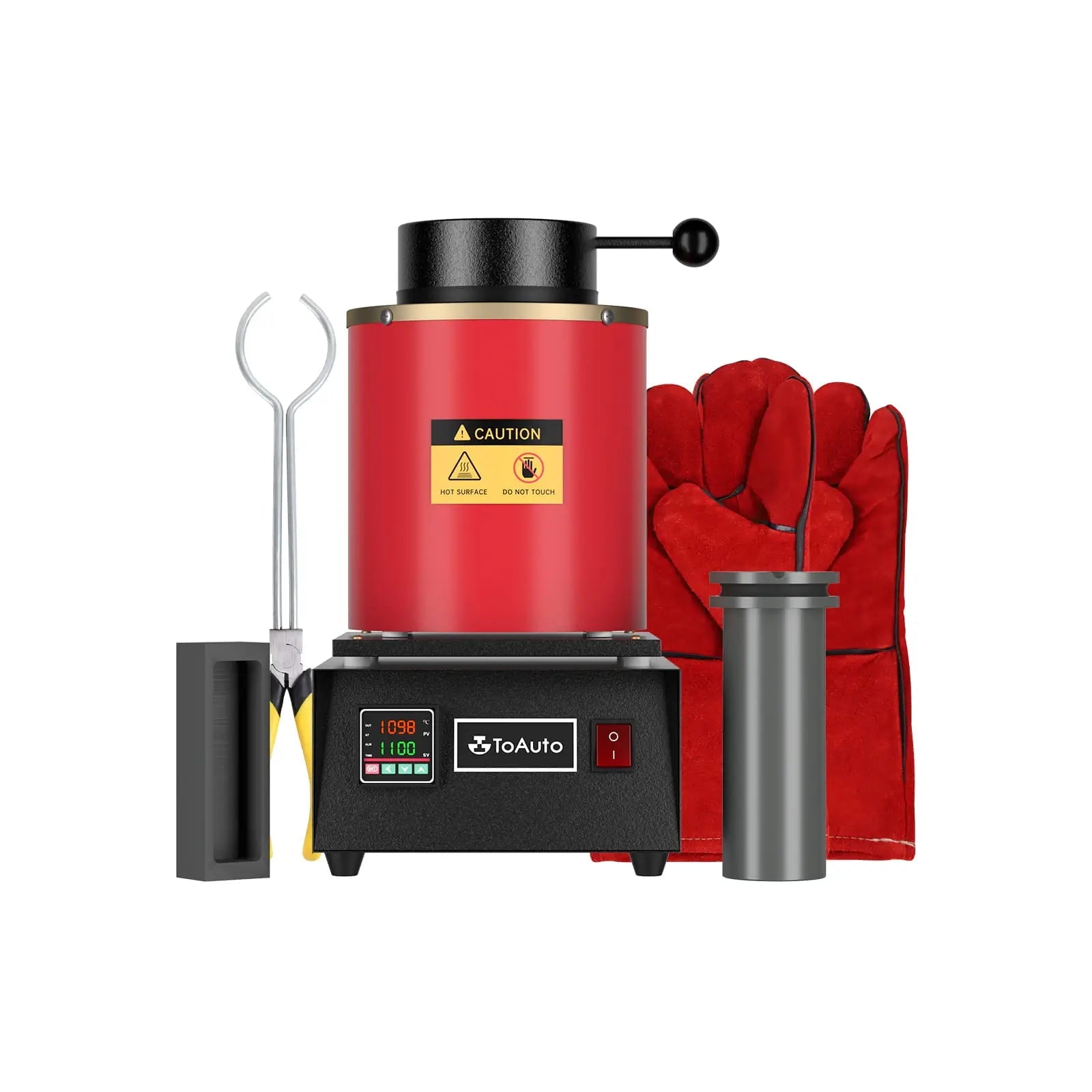

3KG Electric Metal Melting Furnace Kit
Sale price
$279.82
Regular price
$298.99
On Sale
Shipping calculated at checkout
Only 20 in stock
Product Details
Model: TGF3000
Voltage: 110V/220V
Max Temp: 1100°C (2000°F)
Power: 1400W
Package Dimensions: 16.6 x 12.5 x 12.1 inches
Item Weight: 13.2 pounds
Material: Heat-resistant metal
Melting Time: 45–60 mins
Use: Indoor home, studio, metal melting, Jewelry store
Key Features
- PID Intelligent Temp Control: High-precision PID adjusts every 2 sec. Lab test: melts copper to 1100°C in 48 min with ±3°C stability—cutting casting failures by 67% vs. non-PID models for reliable, repeatable results.
- 48-Minute Rapid Melting: 1400W + heat-seal design melts 3kg copper in 48 min—35 min faster than 800W units. Gold/silver/aluminium melts in 45–60 min, boosting daily output for jewellers and small foundries.
- Grooved Graphite Crucible: Textured interior ensures even heating & residue-free pours. After five 20g gold melts, zero slag remained—achieving >98% metal recovery and slashing precious metal loss in real use.
- Triple Safety Protection: Heat-seal lid + auto shut-off + 800°C gloves. Outer shell stays at 65°C after 1 hr full load—below 70°C burn threshold. Safe for beginners, trusted by pros in home studios.
- 3 kg Large Capacity: Holds up to 3kg (6.6 lbs)—melts 2.8kg copper without overflow. Nearly doubles output vs. 1.5kg furnaces, enabling multi-part casts in one batch. Ideal for production-scale hobbyists & artisans.
10 Things to Know Before Melting Metal
Compare Melting Furnaces
Select at least 2 columns below to compare side-by-side.
FAQ About Smelting Tools
Why does my crucible crack or the lid fall off after a few melting cycles?
+
High-temperature cycling increases structural stress. Low-density or recycled graphite cracks within 5–10 melts. Our high-purity crucible is rated for 50–100 cycles. Early cracking usually means poor material quality, not user error.
Why does it take 60 minutes to melt copper while others only need 20 minutes?
+
Real melting speed depends on actual wattage, insulation thickness, and temperature consistency. Some products claim “1400W” but deliver far less. A true 1400W+ furnace melts 300g copper in 20–25 minutes.
Will the furnace smoke, spark, or trigger GFCI during normal use?
+
No. Smoke, sparks, and frequent GFCI trips indicate electrical or coil insulation faults. A proper furnace uses thick insulation, grounded chassis, GFCI protection, and overheat safeguards.
Will the pliers or molds break or be too small?
+
Cheap pliers deform above 500°C. Good pliers must hold 1200°C red-hot crucibles safely. Molds under 100g capacity are impractical. A proper kit includes heat-resistant pliers and molds matching the crucible size.
Why do cheap furnaces become more expensive over time?
+
Thin crucibles, weak insulation, and low-grade electronics wear out faster. Real cost includes power usage, consumables, and downtime — not just the purchase price. Durable systems lower long-term cost per kilogram.
Does “Max 1100°C” mean accurate temperature control?
+
No. Max temperature ≠ stability. Many units swing ±50°C, causing oxidation and bubbles. A PID controller holds ±5°C accuracy, reducing defects by up to 75%.
How do I reduce carbon buildup inside the furnace?
+
Carbon builds up when the inner lining is rough. A removable, smooth alumina lining allows quick wiping after each melt and prevents residue from hardening.
Are the instructions difficult for beginners?
+
Beginners often skip steps like crucible preheating or grounding checks. If unclear, contact support or follow our video tutorials. The wrong operation can cause overheating or cracking.
Can I melt aluminum, silver, or gold?
+
Yes. Use high-purity graphite crucibles and match temperatures. Avoid cross-contamination by dedicating one crucible per metal.
