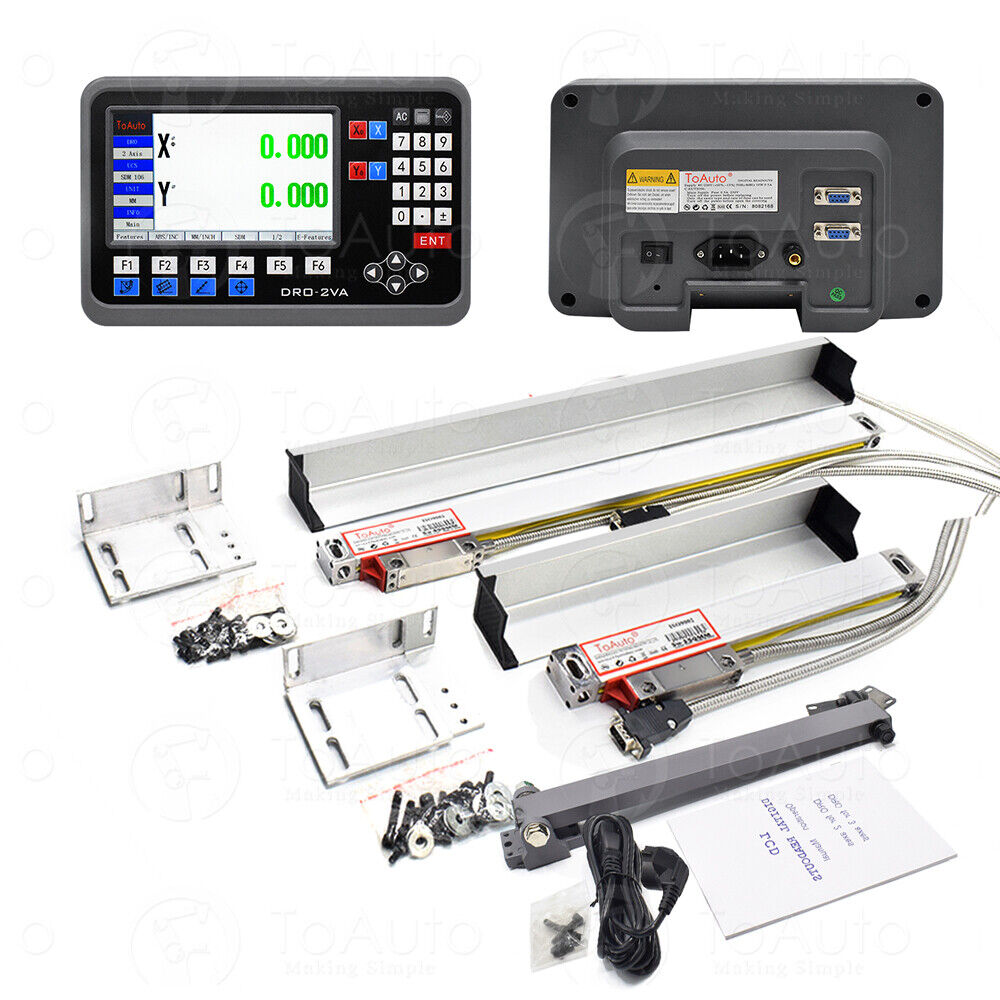

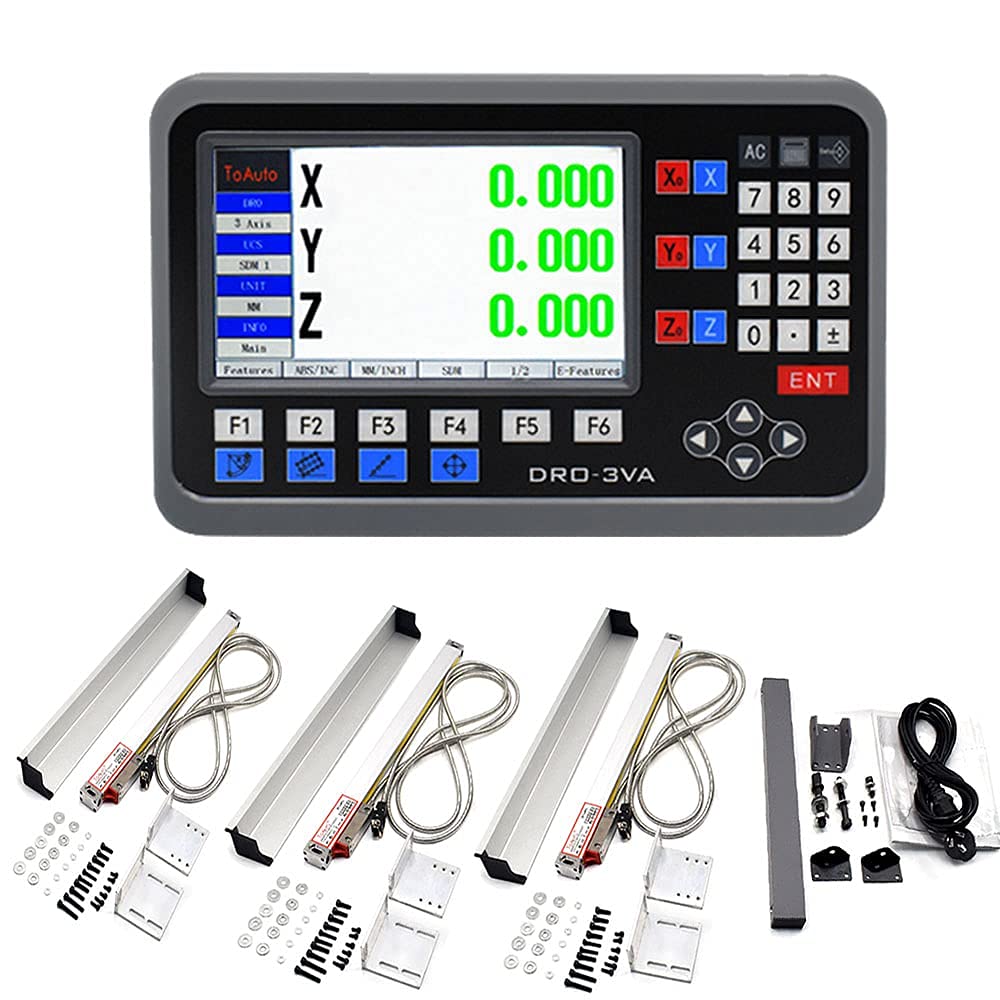

2/3 Axis DRO Kit LCD Display +Scales
Shipping calculated at checkout
Out of stock
Product Details
LCD Digital Readout Introduction :
1, Basic Information :
Reset
Input preset data for an axis
MM/inch Mode
Absolute/relative / user coordinate system
Automatically divide by 2
SDM General Clearance
Screen saver function
Power-down memory function
Set the mechanical zero of the sensor
Non-linear compensation
Linear compensation
Lathe diameter radius switch
Anti-shake switch
Coordinate joint switch
Brightness adjustment
2, Special Function :
Circumferential hole
Linear hole
Smooth arc
Simple arc
Bevel machining
Network hole
Inner machining
Machining function of EDM
|
Model |
2/3 LCD Digital Readout |
|
Supply Voltage range |
AC86V~240V; 50HZ~60HZ |
|
Power consumption |
15VA |
|
Operating temperature |
0 ~ 50 degrees centigrade |
|
Storage temperature |
-20~65 degrees centigrade |
|
Relative humidity |
Less than 90% |
|
Readout allowable input signal |
RS485 |
|
Allowable input signal frequency |
Less than 5MHz |
|
Max resolution of the digital display length |
5µm/1µm |
|
Weight |
1.55kg |
|
Packing Size |

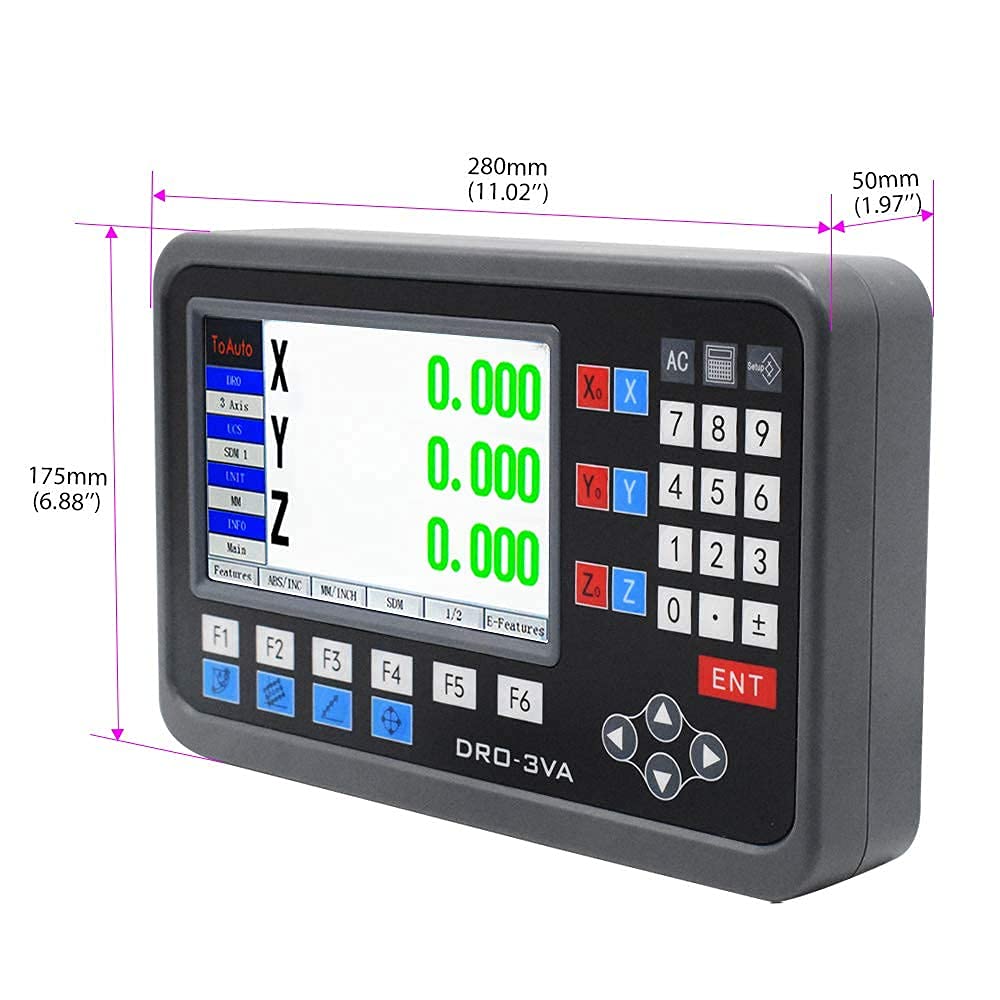

35x15.5x22.5cm (Both 2Axis and 3Axis are same) |
|
Display Advantage |
Having a good capacity of resisting disturbance, a durable keyboard, and being easy to change |
