3 kg Crucible Capacity Explained: Aluminum, Copper, Silver, and Gold
Quick answer
A 3 kg crucible is not a universal 3 kg container. The label may refer to a particular metal or seller convention. For any exact crucible, usable mass changes with metal density, alloy composition, internal volume, charge shape, required freeboard, and the furnace’s mechanical limits. The reliable method is to obtain the crucible’s usable volume and calculate mass from the intended alloy—not to scale the label blindly.
Why the same crucible holds different weights
Density is mass per unit volume. The Royal Society of Chemistry lists room-temperature densities of about 2.70 g/cm³ for aluminum, 8.96 g/cm³ for copper, 10.5 g/cm³ for silver, and 19.3 g/cm³ for gold. Therefore, equal solid volumes of those pure metals have very different masses.
| Pure metal | Room-temperature density | Approximate solid mass per liter | What it means for equal volume |
|---|---|---|---|
| Aluminum | 2.70 g/cm³ | 2.70 kg/L | Much lighter than copper |
| Copper | 8.96 g/cm³ | 8.96 kg/L | Common reference point in some listings |
| Silver | 10.5 g/cm³ | 10.5 kg/L | Heavier than copper |
| Gold | 19.3 g/cm³ | 19.3 kg/L | More than twice copper’s mass per volume |
These are solid, room-temperature reference values. Molten density changes with temperature, and alloys differ from pure elements. Use the table to understand the direction and scale of the difference, not as a hot fill specification.
The safe calculation sequence
1. Find the actual internal volume
Use the manufacturer’s drawing or a verified internal-volume value for the exact part number. Do not fill a production crucible with water unless the manufacturer explicitly permits that measurement and the crucible can be completely dried under its specified procedure afterward. Moisture and molten metal are a dangerous combination.
2. Identify the exact alloy density
Use an authoritative datasheet for the alloy, not a generic value for the base metal. Sterling silver, brass, bronze, and aluminum casting alloys do not exactly match pure silver, copper, or aluminum.
3. Calculate theoretical mass
theoretical mass (kg) = internal volume (L) × density (kg/L)
For example, a hypothetical 0.30 L internal volume would correspond to about 0.81 kg of solid pure aluminum or 2.69 kg of solid pure copper at the room-temperature reference densities. It does not mean either mass is a safe working fill.
4. Apply working freeboard and process limits
Never plan to the rim. Allow space for charge settling, expansion, dross or flux where applicable, skimming, tool access, and controlled transport. Follow the crucible and furnace manufacturer’s working-capacity limit.
5. Check the whole handling system
Even when volume is available, confirm the furnace base, crucible wall, lid, tongs, pouring shank, operator, and mold route can handle the total hot mass. A dense metal can produce a heavy load in a small-looking vessel.
What current ToAuto pages actually say

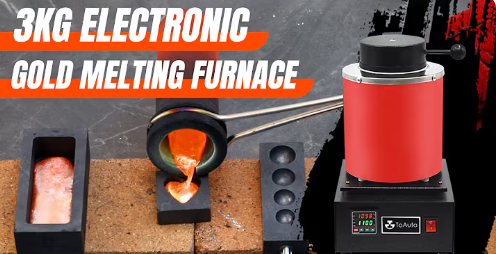

The ToAuto TGF3000 page reviewed July 21, 2026 labels the unit as 3 kg nominal and frames the capacity around copper, including a claim of 2.8 kg copper without overflow. That statement is model-page marketing, not a universal definition of every “3 kg” crucible.
The dual-crucible pages list 1 kg and 3 kg crucibles, but the workspace evidence also records inconsistent capacity conventions across older listings and supplied material. For publication, identify the exact furnace and replacement crucible part number and state the reference metal. If that evidence is absent, say “nominal 3 kg class” and avoid a cross-metal conversion.
Start from the casting, not the crucible
The required melt is larger than the finished part:
required charge = casting + runners/gates/risers + expected process reserve
For an ingot mold, compare the mold’s cavity volume with the intended alloy. A “100 oz” mold can be ambiguous unless the unit and reference metal are clear. Troy ounces, avoirdupois ounces, fluid ounces, and seller-specific cavity labels are not interchangeable.
Irregular scrap creates another gap between theoretical and practical capacity. Coils, wire, cans, and bulky offcuts occupy more space before they collapse or melt. Do not compress unknown or sealed scrap into the crucible, and never push a bridged charge down into molten metal.
When to choose 1 kg, 3 kg, or larger
| Work pattern | Better starting class | Reason |
|---|---|---|
| Small jewelry lots and frequent alloy changes | 1 kg nominal | Less hot mass and easier segregation between alloys |
| Routine small castings or ingots | 3 kg nominal | Balance of batch size and benchtop handling, after metal conversion |
| Larger aluminum parts | Aluminum-referenced larger crucible | Low density requires more volume for the same mass |
| Rare large job but mostly small pours | Smaller routine crucible, outsource/alternate setup for rare job | Avoids heating and handling an oversized vessel every cycle |
Do not put a larger crucible into a smaller furnace unless the manufacturer confirms chamber clearance, support, heating pattern, lid fit, and tool compatibility. “It physically fits” is not an engineering approval.
Questions real users ask
Recent community threads ask whether to buy 3, 6, or 12 kg, what a crucible number means, and how copper-rated capacity converts to aluminum. One recurring recommendation is to size around the actual casting and reserve rather than the largest furnace budget allows. These posts reveal question patterns; their conversion claims are not product specifications.
Frequently asked questions
How much aluminum fits in a 3 kg crucible?
It cannot be answered from “3 kg” alone. You need the exact crucible’s usable volume and the reference metal behind the label. Aluminum is much less dense than copper, so a copper-referenced crucible holds far less aluminum by mass for the same volume.
Can a 3 kg copper-rated crucible hold more than 3 kg of gold?
The density calculation suggests equal volume of gold is much heavier, but that does not establish a safe load. The crucible, furnace support, tools, and operator may not be rated for it. Use the manufacturer’s gold working capacity for the exact system.
Can I fill the crucible to the top?
No. Maintain the manufacturer’s working freeboard. Rim-full operation reduces control and leaves insufficient space for charge settling, dross, skimming, and movement during lifting and pouring.
Does nominal capacity equal final casting weight?
No. The melt must also supply runners, gates, risers, and process reserve. Use the mold system’s total metal demand, not only the finished part weight.
Bottom line
Treat the 3 kg crucible capacity label as a routing clue, not a conversion. The defensible answer comes from exact internal volume, alloy density, working freeboard, total mold demand, and the mechanical rating of the entire hot-handling system.
