Metal Melting Furnace Kit Checklist: What You Need Beyond the Furnace
Quick answer
A useful metal melting furnace kit must do more than heat metal. At minimum it needs a furnace matched to the alloy and power supply, a compatible crucible, lifting and pouring tools that securely fit that crucible, and a suitable mold. You must still supply task-appropriate PPE, ventilation, a dry noncombustible work area, material preparation tools, and an emergency plan. Audit every item; “complete kit” is a marketing phrase, not a safety finding.
Tier 1: Components required to melt and pour
| Component | What to verify | Common buying mistake |
|---|---|---|
| Furnace | Model/revision, voltage, power, frequency, plug, maximum operating temperature, chamber size | Buying by peak temperature or nominal kilograms alone |
| Crucible | Material, external dimensions, internal volume, alloy and heating-method compatibility | Assuming “3 kg” means 3 kg of every metal |
| Lid | Correct fit and safe lifting method | Treating a loose lid as harmless during handling |
| Lifting tongs | Full, stable grip without point loading or crushing | Using general workshop pliers |
| Pouring shank or tongs | Controlled rotation, retention, and mold clearance | Discovering hot that the tool only lifts vertically |
| Mold | Material compatibility, capacity, dry condition, stable support, preheat procedure | Pouring into an unknown, damp, coated, or undersized mold |
Perform the fit check cold. Insert the empty crucible, lift it through the full path, rotate as required, and confirm that hands, cord, lid, mold, and surrounding surfaces do not interfere. A tool that merely touches the crucible is not necessarily a secure lifting system.
Tier 2: Safety controls bundles often understate
PPE is a system
An included pair of gloves does not establish suitability for the alloy temperature, splash exposure, grip, duration, or other hazards. A task-specific assessment should consider face and eye protection, heat-resistant garments, suitable gloves, footwear, and protection from fumes and dust.
Ventilation depends on the feed and mold
Electric resistance heating avoids burner exhaust, but fumes can still come from the charge, coatings, oil, zinc-bearing alloys, lead, flux, binders, or molds. NIOSH identifies metal fumes, dust, silica, carbon monoxide, and decomposition products among foundry hazards. Design ventilation for the process; an open door is not a measured control.
Dryness is non-negotiable
Charge, tools, molds, crucibles, and the work zone must be dry. OSHA has documented molten-metal splash or explosion risk from moisture or foreign material entering molten metal. Never add sealed objects or wet scrap to a melt.
Electrical fit must be verified
Compare the furnace nameplate with the actual branch circuit and local requirements. Do not defeat grounding, substitute adapters, or repeatedly reset a breaker. OSHA requires damaged portable cords and plug-connected equipment to be removed from service and prohibits repetitive manual reclosing after a protective device operates until safe re-energization is determined.
Tier 3: Consumables, measuring tools, and spares
- A dedicated crucible for each metal or alloy family where contamination matters
- A safe method for charging solid feed without dropping heavy ingots into the crucible
- A dry, compatible skimming tool where required
- A scale with appropriate range and resolution
- Mold clamps, a level support surface, and barriers for the pouring zone
- Replacement crucible, sensor/probe, and heating element matched to the exact revision
- Cleaning and inspection tools approved by the crucible manufacturer
- Storage that keeps crucibles and feedstock dry and protected from impact
- A written start-up, shutdown, spill, power-loss, and burn-response plan
Flux, coatings, degassing agents, and respirators are process-specific. Do not add them because a forum or video uses them. Choose them only after the alloy, mold system, exposure assessment, manufacturer instructions, and local rules are understood.
Audit a ToAuto kit line by line

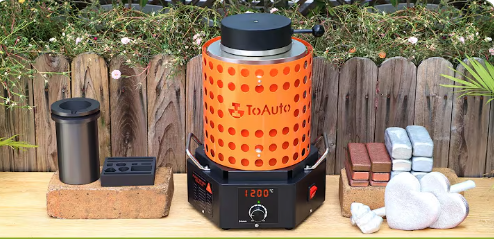

Current ToAuto pages reviewed July 21, 2026 show why SKU-level checking matters. The TGF3000 page identifies a 1400 W unit and 3 kg nominal package. The current dual-crucible page describes a seven-item kit with 1 kg and 3 kg crucibles, mold, gloves, lid, cord, and manual, while the current resistance listing also describes tongs. Those pages contain model-name and maximum-temperature inconsistencies, so copy should not merge them into one specification.
| Question | Acceptable evidence | If missing |
|---|---|---|
| Which exact furnace revision ships? | Label or nameplate photo matching the SKU | Ask the seller; do not infer from the URL |
| Which crucibles ship? | Quantity, material, dimensions, and reference capacity | Budget for verified replacements |
| Do the tools lift and pour? | Clear description and fit demonstration | Add a compatible retained pouring tool |
| What mold ships? | Dimensions, material, cavity volume, and instructions | Select a mold for the planned poured mass |
| What protection is included? | Manufacturer, rating, limitations, size | Perform a separate PPE selection |
| What electrical supply is required? | Exact nameplate plus manual | Ask a qualified electrician before use |
| What fails or wears? | Replacement part numbers and service steps | Treat availability as a buying criterion |
What not to pay extra for
Avoid assigning value to unsupported claims such as “for all metals,” “no extra safety gear needed,” a fixed number of crucible cycles, universal melt times, or an accessory count inflated by trivial parts. A smaller, documented bundle can be more useful than a large bundle with an incompatible crucible or poorly fitting tongs.
A cold commissioning checklist
- Match the received model, revision, voltage, plug, and nameplate to the order.
- Inspect shipping condition, lining, element area, sensor, cord, plug, switch, crucible, lid, and tools.
- Read the current manual for that revision.
- Confirm branch-circuit suitability with a qualified person.
- Verify crucible clearance and tool fit cold.
- Map the charge, lifting, pouring, and emergency routes.
- Confirm that charge, mold, tools, and work surfaces are dry.
- Establish ventilation and restrict access.
- Perform the manufacturer’s specified initial heating procedure without inventing a seasoning recipe.
- Record the first run: alloy, mass, form, voltage, ambient conditions, set point, timestamps, and observations.
Questions real users ask
Search results and community discussions ask whether a bundle is ready to use, whether one crucible can serve several metals, how much a kilogram-rated crucible holds, and whether a normal outlet can power an 1800 W unit. In the supplied 607-review dataset, crucible issues, electrical complaints, weak instructions, and missing or damaged components recur. These patterns justify an audit checklist; they do not prove every unit has the same problem.
Frequently asked questions
Does a metal melting furnace kit include everything needed?
Usually not. Even if it includes a furnace, crucible, tongs, mold, and gloves, the operator still needs verified electrical or fuel infrastructure, process-specific PPE, ventilation, a dry work zone, feed preparation, emergency planning, and often better-fitting handling tools.
Can the included gloves be treated as complete PPE?
No. Confirm their manufacturer, rating, condition, size, and limitations, then select the full PPE ensemble for the alloy, temperature, splash, fumes, mold process, and local rules.
Should each metal have a separate crucible?
Use dedicated crucibles when cross-contamination can affect chemistry, color, assay, or casting quality. Label them and verify material compatibility with the alloy and furnace.
What spare should a beginner buy first?
A revision-matched replacement crucible is often the most predictable consumable. Verify dimensions and fit rather than relying only on the kilogram label. Sensor and heating-element availability also matters for electric units.
Bottom line
The best metal melting furnace kit is documented, compatible, replaceable, and safe to integrate into a complete process. Compare the furnace, crucible, handling system, mold, electrical fit, and spares separately. Treat bundled accessories as starting components—not proof that the workstation is ready for molten metal.
